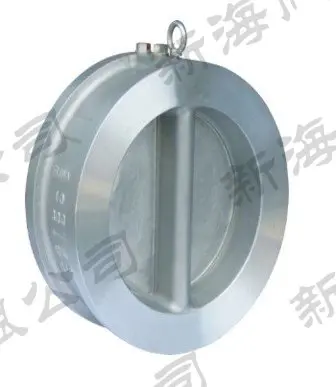

API 594 Wafer Check Valve, 2-16 Inch, Class 150-2500 LB

API 594 Wafer Check Valve Supplier: Wafer Type Check Valve, API 594, 2-16 Inch, Class 150-2500 LB, Carbon Steel, SS, AS, Test API 598, FF API 594.

Categories: API Check Valves

Tags: API 594 Check Valve , Wafer Type Check Valve , 2 Inch Check Valve

Request a quote

Detail Information

NAME: WAFER CHECK VALVE.
DESIGN AND MANUFACTURE: API 594.
INSPECTION AND TEST: API 598.
END FLANGE DIMENSION: ASME B16.5.
F-T-F DIMENSION: API 594.
PRESSURE-TEMPERATURE: ASME B16.34.
DESIGN TEMP.: -29℃-580℃.
NOMINAL DIAMETER: 2-16 Inch.
DESIGN STANDARD: CLASS 150-2500 LB.

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2 Inch - 60 Inch (DN50-DN1500).
End Connection: BW, Flanged.
Pressure Range: 150 - 2500 LB (PN16-PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃-+200℃.
